High and low voltage prefabricated substations

Get Latest Price

Contact Now

Payment Type: L/C,T/T,D/P,Paypal,D/A
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Air,Express
Port: Shanghai,Shenzhen

Supply Ability & Additional Information

Additional Information

Packaging: Export wooden boxes

Transportation: Ocean,Land,Air,Express

Supply Ability: According to product customization requirements

Port: Shanghai,Shenzhen

Payment Type: L/C,T/T,D/P,Paypal,D/A

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Product Attributes

Model No.: YBM-12/0.4-( )

Noise: <45dB

Protection Level: IP44

Frequency: 50HZ

Working Temperature: -20°C~+55°C

Capacity Range: 630kVA-2500kVA (photovoltaic) 630-3400 (wind power)

Voltage Level: 35 (10)/0.315kV (photovoltaic), 35 (10)/0.69kV (wind power)

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Export wooden boxes
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Company Video



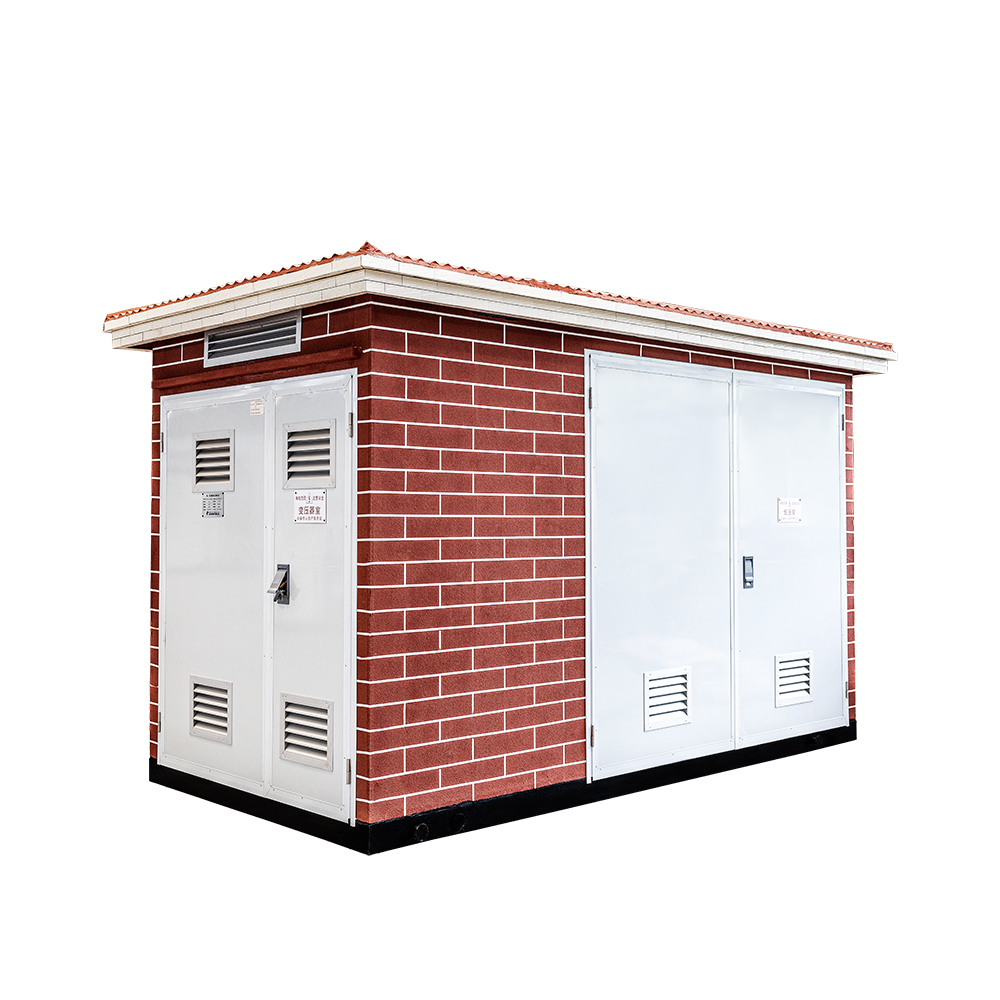

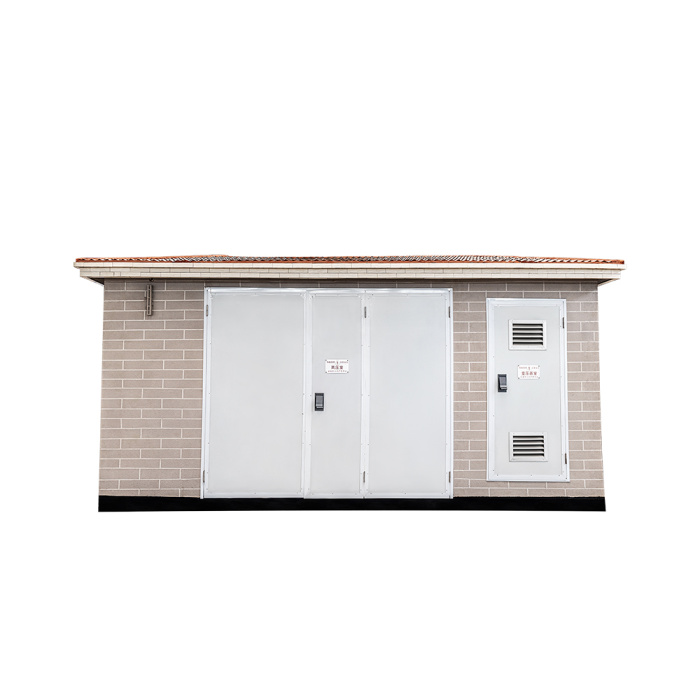

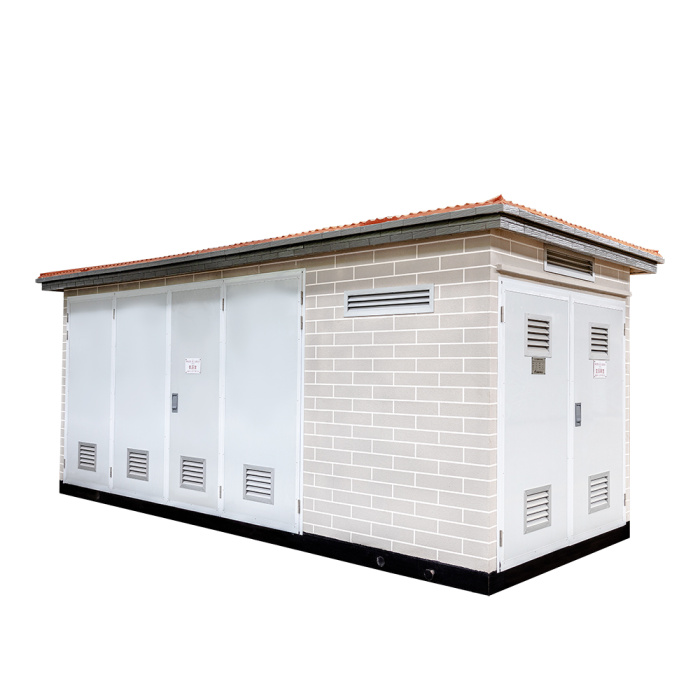

High And Low Voltage Prefabricated Substation

Product Description

High And Low Voltage Prefabricated Substation Differentiated advantages：

✔ Compact design: 40% less floor space, double-layer steel plate + fireproof cotton structure, noise <45dB

✔ Strong security: Multiple security measures, with password protection and permission management functions

✔ Quick deployment: Factory prefabrication, 60% shorter on-site installation cycle

✔Integrated power supply, easy to install, mature and stable. Maximum load 1600KW

The Box Transformer is designed according to the actual situation with reference to foreign advanced technology, and it has the characteristics of firmness, heat insulation and ventilation, stable performance, corrosion prevention, dust prevention,waterproof, small animal prevention, beautiful appearance, etc. There are many choices of shell materials, such as steel plate, composite plate, stainless steel plate, cement plate, etc.

There are High Voltage Switchgear such as xgn15, hxgn17 or kyn28a and other equipment in the high-voltage room for high-voltage incoming line, high-voltage metering and high-voltage outgoing line. The high-voltage side can be arranged with ring network power supply, terminal power supply, dual power supply and other power supply modes, and high-voltage metering elements can also be installed to meet the requirements of high-voltage metering. The main switch is generally load switch or vacuum circuit breaker, with compact and reasonable structure and perfect anti misoperation function.

There are low-voltage switchgear such as GGD, GCS or MNS and other equipment in the low-voltage room for low-voltage incoming line, reactive compensation and low-voltage outgoing line. The low-voltage side adopts the panel type or cabinet mounted structure to form the power supply scheme required by the user, which can meet the power distribution, lighting distribution, reactive compensation, electric energy metering and other functions. The main switch generally adopts the universal circuit breaker or the intelligent circuit breaker, which is flexible in installation and simple in operation.

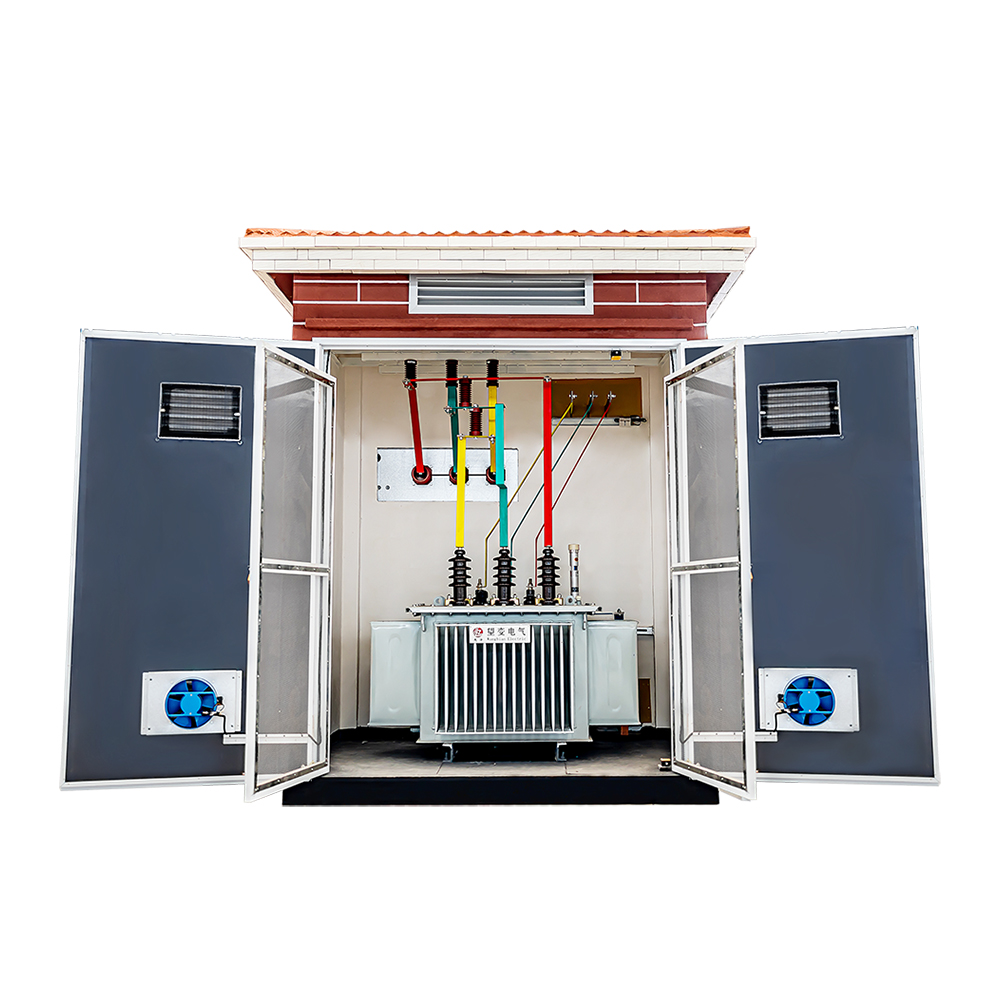

The transformer in the transformer room can use the fully sealed Oil Immersed Transformer or Dry-Type Transformer. The oil Immersed Transformer can be S9, S11, S13 or SH15, and the dry-type transformer can be scb10, scb11, SGB10 or scbh15. According to the actual needs of customers, it can be configured freely, which has the advantages of more selectivity and flexibility.

The cover of the box is designed with double-layer structure, and the interlayer is filled with foam plastics, which has good heat insulation function. The transformer room is equipped with anti condensation and automatic temperature control monitoring, heating and cooling devices. A dust-proof device is arranged on the position of the door sheet and the louver outside the side plate.
